Name: 15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input
Brand: Chengdu Xingtongli Power Supply Equipment Co., Ltd.
SKU: GKDH15-10CVC
Price: 665.00 USD
Availability: InStock

Nom De Marque:	Xingtongli
Numéro De Modèle:	GKDH15-10CVC
Nombre De Pièces:	1 pièces
Prix:	580-750$/unit
Détails De L'emballage:	paquet d'exportation standard en contreplaqué solide
Conditions De Paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

Chine

Certification:

CE ISO9001

Capacité d'approvisionnement:

200 ensembles/ensembles par mois

Mettre en évidence:

15V 10A DC power supply

Polarity reversing power supply with HMI

Low ripple RS485 control power supply

Description de produit

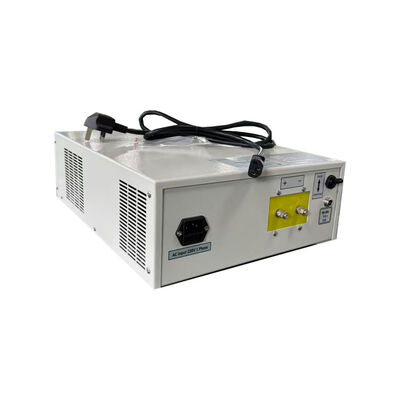

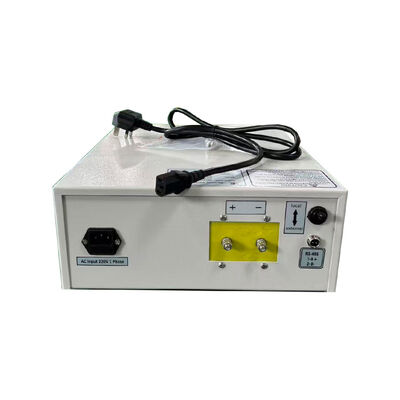

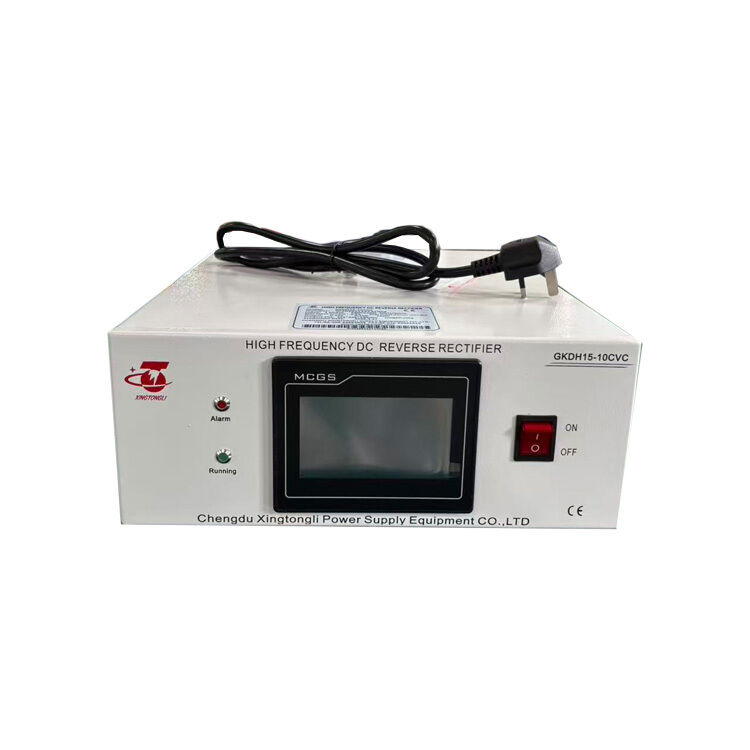

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input

This 15V 10A polarity reversing DC power supply is designed for high-precision electrochemical and laboratory applications. It provides stable DC output with ultra-low ripple (≤1%) ensuring consistent and reliable process results. Equipped with an intelligent CPU control system, it supports HMI touch screen operation and RS485 communication for easy remote control and system integration. With 220V single-phase input, this unit is ideal for electroplating, surface treatment, and research applications requiring programmable polarity reversal and precise current control.

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0±15V continuously adjustable
- Current: DC 0±10A continuously adjustable
- Power: Max 150W (15V *10A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.

Étiquettes:

Approvisionnement d'alimentation CC programmable 30KV

approvisionnement d'alimentation CC 30A programmable

Alimentation d'énergie programmable 600V

Détails Des Produits

Maison > Produits >

Approvisionnement d'alimentation CC programmable

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input

Toutes Les Catégories

Alimentation d'énergie de galvanoplastie

Alimentation d'énergie d'électrolyse

Alimentation d'énergie de anodisation

Redresseur d'oxydation

Alimentation d'énergie d'électropolissage

Alimentation d'énergie d'électrocoagulation

Redresseur de carte PCB

Alimentation d'énergie d'électrophorèse

Alimentation d'énergie à haute fréquence de commutation

Approvisionnement d'alimentation CC programmable

Bloc THT CC

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input

Nom De Marque:	Xingtongli
Numéro De Modèle:	GKDH15-10CVC
Nombre De Pièces:	1 pièces
Prix:	580-750$/unit
Détails De L'emballage:	paquet d'exportation standard en contreplaqué solide
Conditions De Paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram

Informations détaillées

Description de produit

Informations détaillées

Lieu d'origine:

Chine

Nom de marque:

Xingtongli

Certification:

CE ISO9001

Numéro de modèle:

GKDH15-10CVC

Quantité de commande min:

1 pièces

Prix:

580-750$/unit

Détails d'emballage:

paquet d'exportation standard en contreplaqué solide

Délai de livraison:

5-30 jours ouvrables

Conditions de paiement:

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacité d'approvisionnement:

200 ensembles/ensembles par mois

Mettre en évidence:

15V 10A DC power supply

Polarity reversing power supply with HMI

Low ripple RS485 control power supply

Description de produit

15V 10A Polarity Reversing DC Power Supply Low Ripple ≤1% with HMI Touch Screen RS485 Control 220V Single Phase Input

Technical Specifications

Input Power: single-phase 220V AC ±10%, 50/60Hz
Output Capability:
- Voltage: DC 0±15V continuously adjustable
- Current: DC 0±10A continuously adjustable
- Power: Max 150W (15V *10A)
Regulation Accuracy: Voltage ±1%, Current ±1%
Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
Operating Temperature: -10℃ to +50℃
Protection Rating: IP21 (dust and drip-proof)

Key Advantages

Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
Compact Design: Space-saving and lightweight, suitable for workshops or labs.
Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications

Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
R & D & Education: Electrochemical experiments in universities and research institutes.
